Fused Quartz Tube
Clear, ozone-free and high-purity tubes, OD 2–500 mm, for lamps, UV sterilization and furnaces.
View Series OEM / ODM Manufacturer
Fused Quartz Tube & Quartz Glass Manufacturer
Excellent quality, enterprise essence. OD 2–500 mm, made to your drawing.
OEM / ODM
Quartz Plates, Sheets & Rods
Cut, ground and polished to spec. Rods from Ø1.5 to 80 mm.
Custom Quartzware
Lab & Semiconductor Quartz Instruments
Boats, supports, cleaning tanks and flanges — flame-worked to drawing.
High Purity
Transparent Quartz Crucibles
Thermal-shock resistant crucibles for melting, sintering and analysis.
2–500mm
Fused quartz tube outer-diameter range
≤20ppm
Total metallic impurities in high-purity quartz sand
≤2h
Average response time to buyer enquiries
50%
Buyer reorder rate on verified transactions

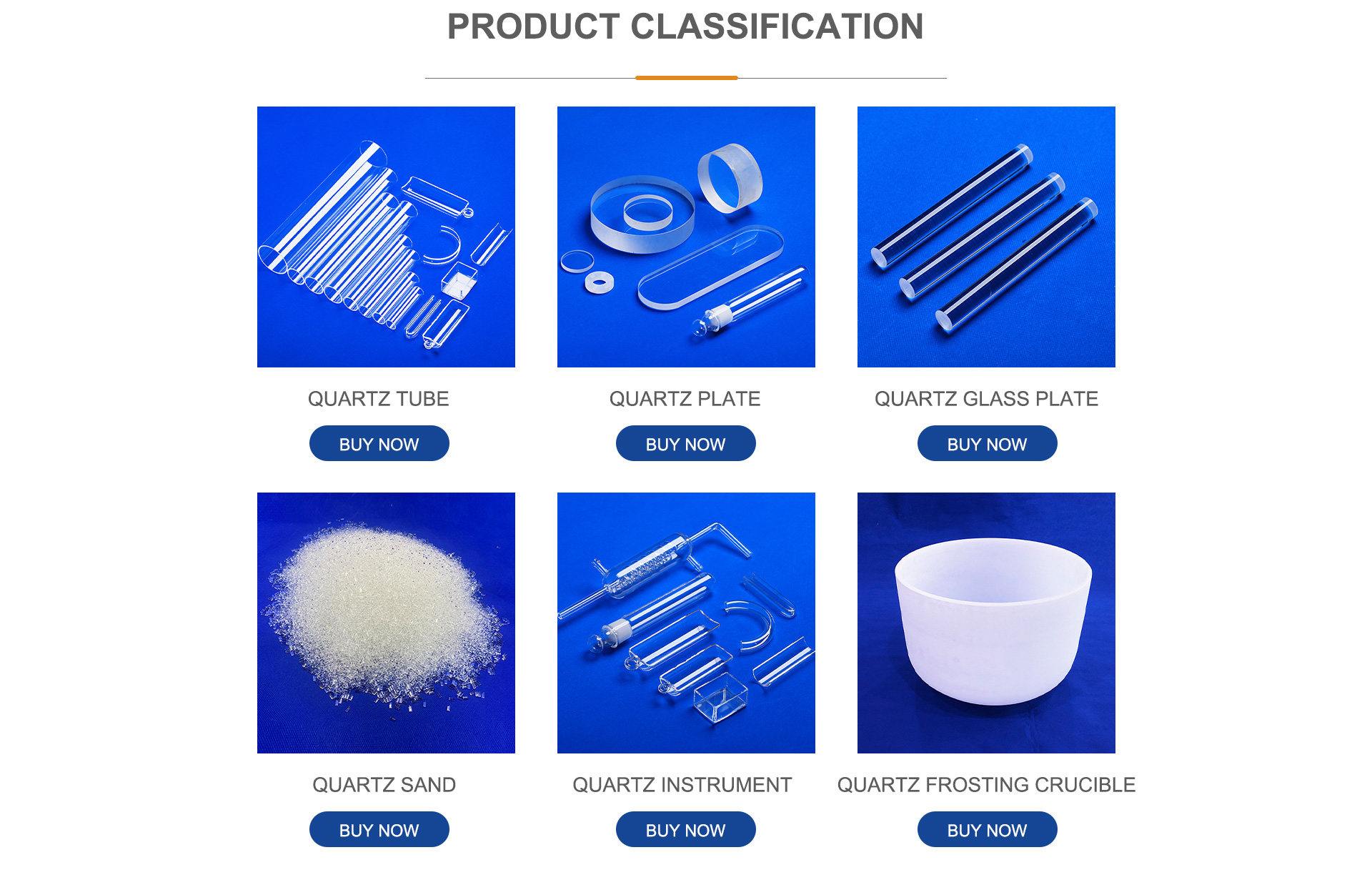

Product Portfolio
Quartz Product Categories
From raw high-purity quartz sand to precision-finished fused quartz components — one factory, one quality system, one point of contact for your sourcing.
Quartz Glass Plate & Rod
Optical-grade plates, sheets, windows and solid rods from Ø1.5 to 80 mm.
View SeriesQuartz Instrument
Laboratory and semiconductor quartzware: boats, supports, cleaning tanks, flanges and joints.
View SeriesQuartz Crucible
Transparent crucibles for metal melting, sintering, ashing and analytical laboratories.
View Series
High-Purity Quartz Sand
13 grades of ultra-high-purity sand with total conventional metal impurities ≤20 ppm.
View Series
Full Product Catalog
Browse every quartz tube, plate, rod, crucible and custom component in one place.
View All
Donghai, JiangsuLocated in China's Quartz Capital
About VEZLO Quartz
Quartz Expertise Rooted in China's Quartz Capital
VEZLO Quartz Products Co., Ltd. operates a 50-mu (≈33,000 m²) production base in Donghai County, Jiangsu Province — the region known as "China's Quartz Center" for its high-purity natural quartz resources and complete processing supply chain. Backed by RMB 10 million in fixed assets, we melt, draw, cut and finish fused quartz glass for electric light sources, UV sterilization, chemical piping, communication, heating equipment and semiconductor processing.
Our 320 mm high-purity quartz tube for large-scale integrated circuits was carried out as a Jiangsu Provincial Science & Technology Support (Industrial) Project, and our newly developed 520 mm large-diameter high-purity tube has passed the preliminary review for national new products. We are now industrializing large-diameter tubes for 14-inch-plus wafer oxidation and diffusion furnaces, with more than RMB 5 million invested in new product development every year.
- Business Type
- Manufacturer & Trading
- Team Size
- 11–50 People
- Annual Revenue
- US$1–2.5 Million
- Location
- Lianyungang, Jiangsu
- Response Time
- ≤ 2 Hours
- Reorder Rate
- 50%
Category Deep-Dive
Engineered for Your Application
Each series is produced in-house and adapted to the thermal, optical and purity demands of your process.
Quartz Tube
Transparent fused quartz tubes, OD 2–500 mm, with 520 mm large-diameter capability.
Explore SeriesClear Fused Quartz Tube
High transparency for lamps, sight glasses and protection sleeves.
Ozone-Free / UV-Filter Tube
Blocks the 185 nm line, passes 254 nm for germicidal lamps.
Diffusion Furnace Core Tube
High-purity large-diameter tubes for wafer oxidation & diffusion.
Heating & IR Lamp Tube
Thermal-shock resistant tubes for heaters and IR emitters.
Fishing Lamp Bulb Shell
Durable quartz envelopes for high-power marine lighting.
Quartz Plate & Rod
Cut, ground and polished fused quartz plates, windows, sheets and rods.
Explore SeriesOptical Quartz Plate
Double-side polished plates for optics, UV curing and sensors.
Quartz Window & Disc
Round or square sight windows for furnaces and reactors.
Quartz Rod Ø1.5–80 mm
Solid rods for light guides, supports and flame-working.
Amorphous Quartz Particles
Coating material for optical thin-film deposition.
Crucible & Quartzware
Crucibles, boats, supports and tanks for labs and semiconductor fabs.
Explore SeriesTransparent Quartz Crucible
For melting precious metals, sintering and ashing.
Quartz Boat & Support
Wafer carriers for diffusion and LPCVD processes.
Quartz Cleaning Tank
Acid-resistant tanks for wet-bench wafer cleaning.
Quartz Flange & Joint
Ground flanges and joints for vacuum and gas lines.
High-Purity Quartz Sand
13 grades, ≤20 ppm metals.
View Sand →
Why Choose Us
Why Global Buyers Source from VEZLO
Factory-level control from raw sand to export crate — so your quartz parts arrive on spec and on schedule.
Source-Level Purity
Inside Donghai's quartz cluster we work from high-purity sand (≤20 ppm total metals) to finished glass — reducing bubbles, inclusions and devitrification risk.
Precision to Drawing
Tubes OD 2–500 mm, rods Ø1.5–80 mm, plates cut and polished to tolerance, plus flame-working for boats, flanges, joints and custom labware.
Inspected Before Shipping
Dimensional checks, visual inspection for bubbles and airlines, and application-focused testing — with material data available on request.
Export-Ready Service
Shock-proof export packing, sea, air and express options, and English-speaking engineers with an average response under 2 hours.
Technical Reference
Fused Quartz Properties & Specification Guide
Use these typical values and the 5-step checklist to compare suppliers and prepare an accurate technical brief.
| Property | Typical Value | Why It Matters |
|---|---|---|
| SiO₂ content | ≥ 99.99% | Low contamination for semiconductor & UV lamps |
| Density | 2.20 g/cm³ | Lightweight compared with ceramics |
| Thermal expansion | 5.5 × 10⁻⁷ /°C | Exceptional thermal-shock resistance |
| Softening point | ≈ 1,683 °C | Defines the forming & flame-working window |
| Annealing point | ≈ 1,215 °C | Stress relief after welding or shaping |
| Long-term service temp. | ≈ 1,100 °C | Continuous furnace & heater operation |
| Chemical resistance | Excellent | Inert to most acids except HF & hot H₃PO₄ |
| HP quartz sand impurities | ≤ 20 ppm | Total conventional metals, for premium melts |
Values are typical for transparent fused quartz and may vary by grade. Grade-specific data is available on request.
How to Specify a Quartz Tube
Include these five points in your first message to receive an engineering-checked reply faster.
- Dimensions & toleranceOD, ID or wall thickness, length, and the tolerance you need on each.
- End finishOpen, closed (domed or flat), flared, ground joint, flange or cut-to-length.
- Material gradeClear standard, ozone-free/UV-blocking, or high-purity semiconductor grade.
- Operating conditionsMax temperature, heating rate, atmosphere, vacuum or pressure, chemicals.
- Volume & packagingPrototype or batch quantity, annual demand, labelling and packing needs.
Credentials
Verified Capability & Recognition
Independent verification and government-backed R&D projects that buyers can check before placing an order.
Onsite-Verified Supplier
Company premises checked onsite by Alibaba.com staff, with legal status confirmed by a third-party verification company.
View Credit ReportJiangsu Provincial S&T Project
320 mm high-purity quartz tube for large-scale integrated circuits, delivered as a provincial Science & Technology Support project.
Company OverviewNational New Product Review
Newly developed 520 mm large-diameter high-purity quartz tube has passed the preliminary review for national new products.
Trade CapacityTrade Assurance Supported
Orders placed through Alibaba.com are protected from payment to delivery, with a transparent transaction record.
Transaction Level

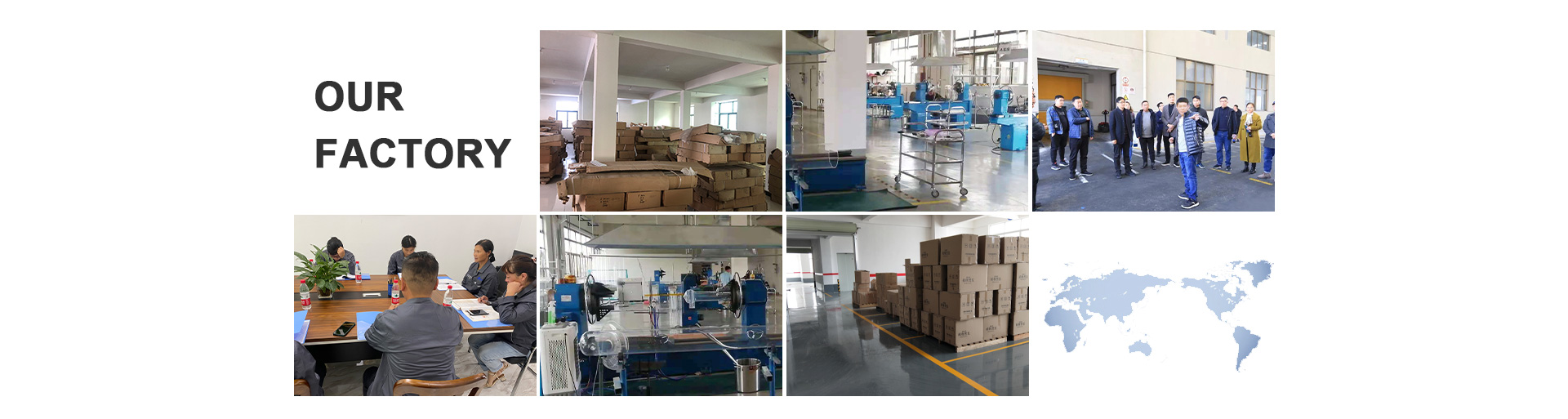

See It Made
Inside Our Quartz Workshop

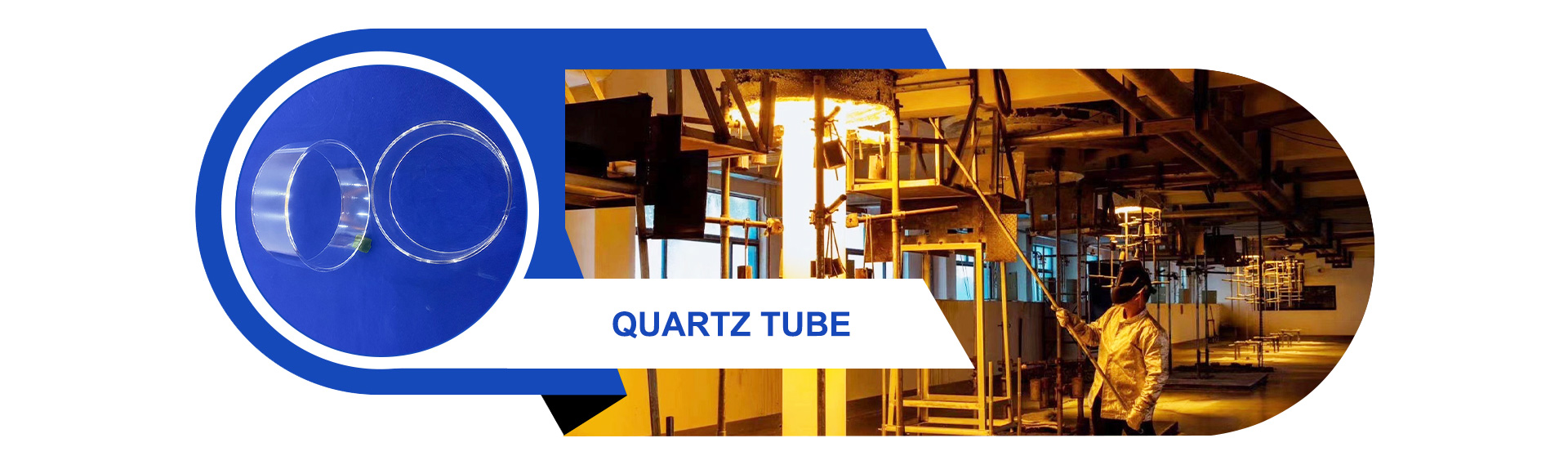

Watch how high-purity quartz is melted, drawn into tubes and finished by hand — the same process behind every order we ship.
- Continuous melting and tube drawing for consistent wall thickness
- Skilled flame-working for boats, joints and custom labware
- Cold processing: cutting, grinding and polishing of plates and rods
GermanyUnited KingdomUnited StatesFranceRussiaAsia-Pacific
Watch Video Buyer FAQ
Frequently Asked Questions
Straight answers to the questions procurement and engineering teams ask us most.
What sizes of fused quartz tube can you produce?
Standard transparent fused quartz tubes are produced from 2 mm to 500 mm outer diameter. We have also developed a 520 mm large-diameter high-purity tube for semiconductor diffusion and oxidation furnaces. Wall thickness, length and end finishing are made to your drawing.
What is the difference between fused quartz and fused silica?
Fused quartz is made by melting high-purity natural quartz crystal or sand; synthetic fused silica is produced from silicon-based precursors such as SiCl₄. Synthetic silica offers higher deep-UV transmission, while fused quartz delivers excellent thermal stability and purity at a lower cost for lamps, furnaces, labware and most industrial applications.
What is an ozone-free quartz tube and when do I need it?
An ozone-free tube is doped to absorb the 185 nm UV line that converts oxygen into ozone, while still transmitting the 254 nm germicidal wavelength. Choose it for UV sterilization lamps in water, air or surface disinfection where ozone generation is not acceptable.
Do you accept OEM and ODM custom quartz parts?
Yes. We manufacture to customer drawings — tubes with closed or flared ends, ground joints, flanges, quartz boats, cleaning tanks, crucibles, plates, windows and rods — and can support private-label packaging.
How quickly will I get a technical reply?
Our average response time is under 2 hours, and around half of our buyers place repeat orders. Send your drawing and the five specification points above to [email protected] or through our contact page.
How are fragile quartz products packed for export?
Each part is typically protected with foam or pearl cotton, then packed in reinforced cartons or fumigation-free plywood cases suitable for sea, air and express shipment.
Start Your Project
Send Us Your Quartz Drawing
Share dimensions, grade and application — our engineers will review feasibility and recommend the right material and process.
