λ/4 Optical Grade
Engineered Portfolio

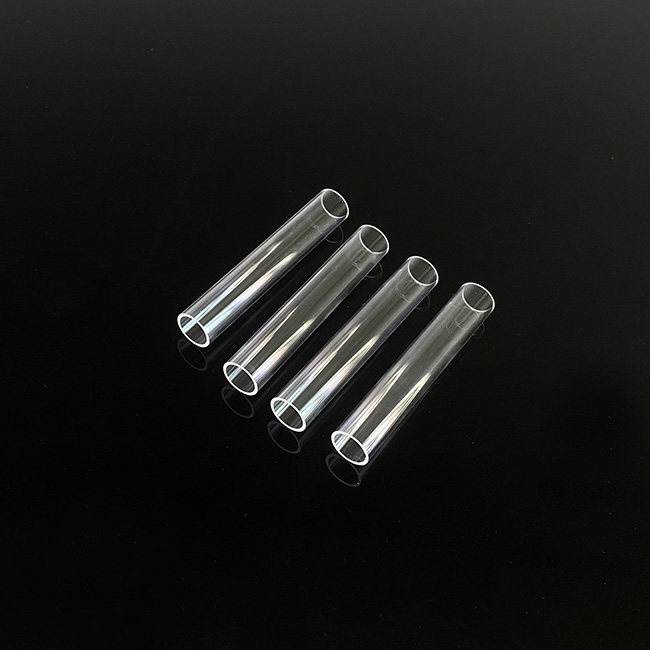

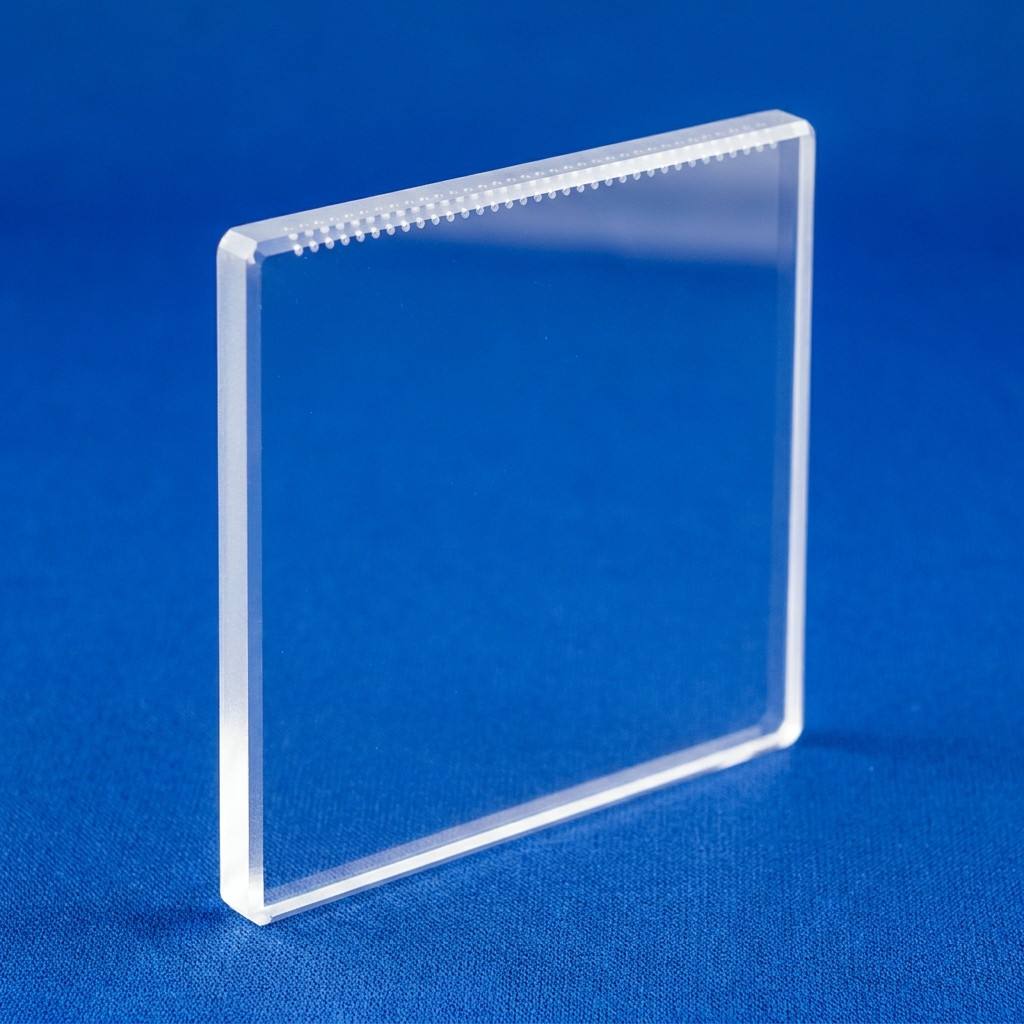

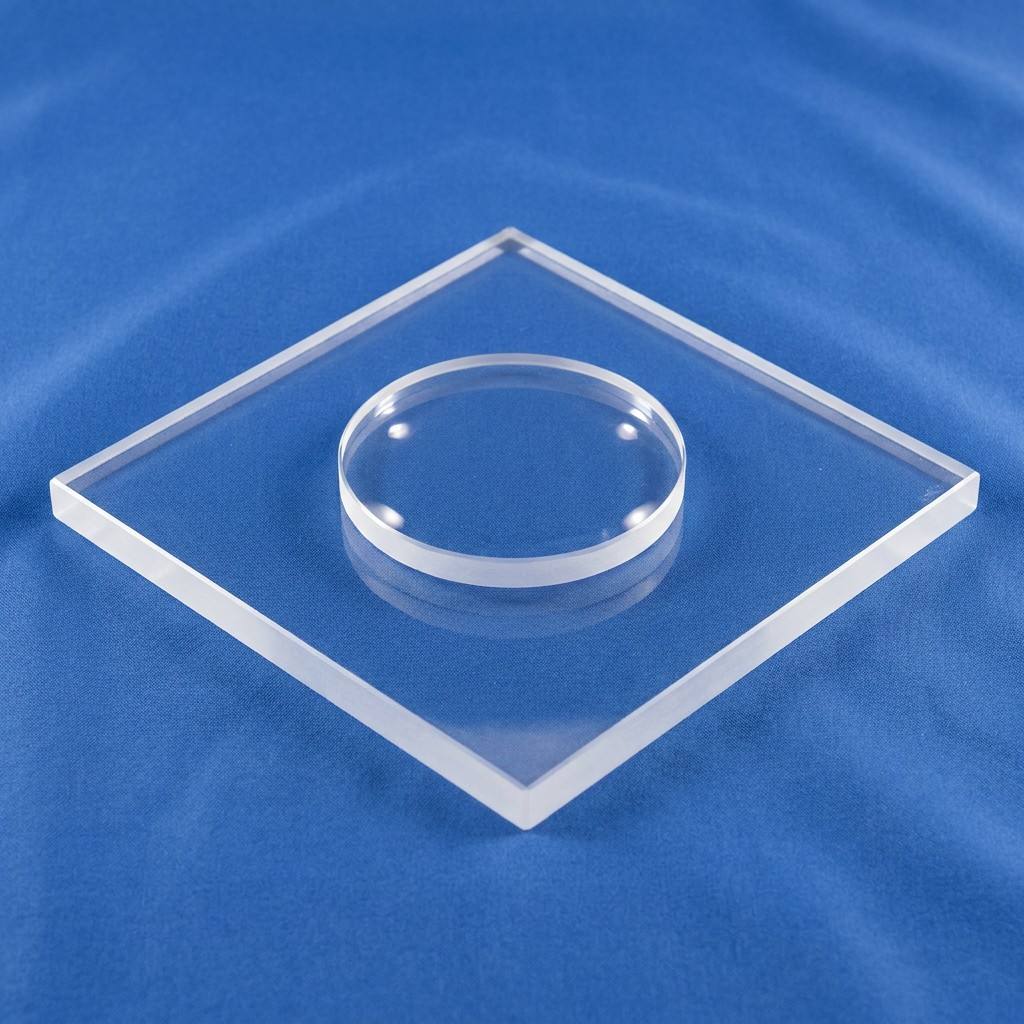

Core OEM Quartz Sleeves & Precision Fused Silica Components
Manufactured from natural high-purity crystalline silica and synthetic quartz in Donghai, China. Explore our high-tolerance custom tubes, plates, and machined protective sleeves.
λ/4 Optical Grade
OD Ø2-500mm
T% > 92% @ 254nm
Precision Polished
CNC Micro-Machined
Laser Cut ±0.05mm
Chamfered / Beveled
High Purity 99.99%
Technical White Paper & Manufacturing Depth
High-Performance Quartz Sleeve Engineering: Metallurgy, Optical Transmission, and Thermal Dynamics
An authoritative engineering perspective on raw material crystallography, hydroxyl (OH⁻) content regulation, and dimensional geometry control for critical mission applications.
In modern industrial applications ranging from advanced municipal ultraviolet disinfection to semiconductor oxidation furnaces, the quartz sleeve acts as an irreplaceable physical and optical barrier. Operating simultaneously as a hermetic pressure envelope, a high-temperature thermal shield, and an ultraviolet/infrared optical window, the integrity of a custom OEM quartz sleeve directly governs system uptime, radiative efficiency, and operational safety. At VEZLO Quartz, rooted directly in the global center of quartz processing—Donghai County, Jiangsu Province—we approach fused silica fabrication not merely as glasswork, but as rigorous molecular engineering.
Information Gain: Why Wall Thickness Uniformity and Geometrical Sphericity Matter
A variation of as little as 0.1 mm in quartz sleeve wall thickness creates optical distortion, uneven thermal gradients under 1100°C operations, and localized stress concentrations that heighten fracture risks during high-pressure municipal water surging (water hammer events) or rapid lamp ignition cycles.
Natural crystalline quartz mined and refined in Donghai undergoes rigorous chemical benefaction, flotation, and multi-stage chlorination roasting to yield ultra-high-purity silica sand with total transition metal impurities (Fe, Ti, Cr, Cu, Ni, Mn) maintained at ≤ 20 ppm. High metallic contamination causes severe absorption band formation in the ultraviolet spectrum (most notably reducing critical germicidal 254 nm and 185 nm output), triggers solarization (photochemical blackening under extended UV exposure), and creates nucleating seeds that accelerate devitrification into cristobalite at temperatures exceeding 1000°C.
33,000 m²
Direct Factory Campus in Donghai
Sustained Dimensional Precision Across Standard & Heavy-Wall Geometry
The manufacturing process of transparent fused quartz sleeves utilizes continuous electric thermal drawing and vacuum-assisted induction fusion. By maintaining continuous laser-gauged closed-loop feedback on both outer diameter (OD) and wall thickness (WT), VEZLO achieves tight dimensional tolerances within ±0.15 mm on standard tubes and up to ±0.05 mm on precision-ground sleeves.
For UV ballast and lamp manufacturers, our sleeve designs offer optimized open-end, domed-end (test-tube round bottom), flared rim, flat sealed, or ground flange terminations. Each end finish is thermally annealed in computer-controlled electric lehrs to eliminate residual drawing stresses, minimizing brittle micro-fissuring when mechanical O-rings and threaded compression gland nuts are tightened during system assembly.
Material Characterization
Physical, Thermal, and Optical Performance Benchmarks
Engineering parameters validated against ISO 9001 quality systems and third-party spectroscopic inspection.
Transparent Fused Silica Sleeve Properties
SiO² ≥ 99.99%
| Physical Parameter | Standard Value | Engineering Significance |
|---|---|---|
| Density (ρ) | 2.20 ± 0.02 g/cm³ | Lightweight, homogeneous structural mass |
| Coefficient of Thermal Expansion (CTE) | 5.5 × 10−7 / °C (20–320°C) | Near-zero thermal shock; resists quench cracking |
| Maximum Continuous Operating Temp | 1,100 °C | Maintains integrity during high-temp halogen & furnace cycles |
| Short-term Peak Service Temp | 1,250 °C – 1,300 °C | Resists deformation under extreme thermal excursions |
| Softening Point / Annealing Point | 1,683 °C / 1,215 °C | High flame-working threshold for custom glassblowing |
| Dielectric Strength (20°C, 1MHz) | 25–40 kV/mm | Superior electrical insulation preventing arc leakage |
| UV Transmittance @ 253.7 nm (Path 1mm) | ≥ 90% – 92% | Maximizes germicidal radiation for water disinfection |
| Ozone Selection Threshold | 185 nm Cut-off Available | Custom doped titanium/cerium to inhibit harmful O³ |
5-Point OEM Engineering Spec Checklist
When submitting an RFP or 2D/3D CAD model, identifying these parameters streamlines production feasibility and ensures accurate quoting within 2 hours:
- 1. Envelope Geometry & Wall Sizing Outer Diameter (OD), Inside Diameter (ID), total length, and permissible dimensional concentricity tolerances.
- 2. End Configuration & Edge Relief Double-open cut, flame-polished smooth ends, rounded dome bottom (closed one end), flared rim, or beaded lip.
- 3. Spectroscopic Absorption Requirements Clear standard UVC transmitting (for water sanitization) vs. Ozone-Free synthetic doping (absorbing <200nm line).
- 4. Dynamic Pressure & Mechanical Stress Operational static pressure (bar/psi) and flow rate exposure to prevent burst failures in pressurized reactor chambers.
- 5. Batch Volume & Anti-Shock Packaging Pilot prototype runs vs. scheduled container allocations with customized shock-dampening foam and marine crates.
Industry Foresight
Emerging Procurement Trends & Next-Gen Quartz Technology (2025–2030)
How shifts in semiconductor node scaling, advanced UV-C LED integration, and sustainable green manufacturing are transforming fused silica procurement strategies.
Transition Toward Ultra-Large Diameter Envelopes
With silicon wafer scaling reaching 300 mm and advanced packaging moving into panel-level architectures, thermal diffusion furnaces demand quartz process core tubes and protection sleeves exceeding Ø450 mm to Ø520 mm. VEZLO is proud to have pioneered the 520 mm large-diameter high-purity quartz tube, verified under provincial high-tech product certifications.
Hybrid UV-C LED & Amalgam Reactor Optimization
As municipal water purification adopts high-output low-pressure amalgam systems alongside solid-state deep-UV LED arrays, sleeve geometry is shifting toward thin-walled, high-flatness sleeves with specialized internal anti-fouling coatings that mitigate mineral scaling without degrading germicidal photon flux.
Supply Chain Decoupling & Raw Material Traceability
Global original equipment manufacturers are actively de-risking single-source monopolies by partnering directly with vertically integrated Chinese manufacturers who control raw crystal refining down to CNC glassblowing. Factory audits require verified raw sand impurity spectra (≤20 ppm metals) to safeguard long-term compliance.
Micro-Drilling & Multi-Port CNC Customization
Industrial quartz components increasingly transcend cylindrical symmetry. High-end chemical vapor deposition (CVD) equipment and photobioreactors require ultrasonic micro-machining, laser slotting, and flame-welded branch manifolds directly on the sleeve body, eliminating prone-to-leak mechanical fittings.
Total Cost of Ownership (TCO) Vendor Selection
Procurement teams are shifting evaluation metrics from nominal unit piece price to Lifecycle Durability. High-purity quartz sleeves that exhibit negligible solarization and high mechanical concentricity reduce field warranty claims, lamp replacement labor costs, and unplanned municipal plant shutdowns by over 35%.
Standardized Vacuum-Sealed Cleanroom Packaging
Cleanliness standards are expanding from semiconductor cleanrooms to medical device sterilization sleeves. Demands for particulate-free, ionized-air-washed, vacuum-sealed packaging eliminate on-site cleaning steps at foreign assembly plants, accelerating assembly throughput.
Enterprise Authority
Why International OEMs Entrust VEZLO Quartz With Critical Projects
Direct supply capability, provincial R&D achievements, and end-to-end quality assurance from China's quartz heartland.
Geographic Cluster Advantage in Donghai
Situated directly in Tuofeng Township, Donghai County, VEZLO operates within China's primary hub for natural silica. This provides uninterrupted access to superior crystalline raw materials, lowering supply chain overhead and insulating international buyers from upstream raw material volatility.
Provincial Science & Technology Recognition
Our 320 mm high-purity quartz tube for ultra-large-scale integrated circuit fabrication was recognized under the Jiangsu Provincial Science & Technology Support Project. Furthermore, our 520 mm large-diameter tube development has achieved preliminary review status for National New Products.
On-Site Verified & Trade Assurance Backed
Our facility, production machinery, and corporate solvency are independently verified onsite by international inspection agencies through Alibaba. Comprehensive Trade Assurance protects transaction capital from order dispatch to point-of-destination clearance.
≤ 2-Hour Response Time & Engineering Collaboration
Our bilingual sales engineering squad reviews technical inquiries within 2 hours. We bridge the communication gap between overseas design engineers and shop-floor glassblowers, accelerating rapid prototyping and DFM (Design for Manufacturability) revisions.
RMB 5M+ Annual R&D Investment
We continuously reinvest in proprietary electric melting processes, computer-driven oxygen-hydrogen lathe welders, and automated optical flaw detection cameras capable of isolating internal bubble lines (<0.1mm) and dimensional deviations before export.
Zero-Damage Export Packaging Engineering
Fragile quartz tubing requires specialized packaging science. VEZLO utilizes custom-molded high-density polyethylene foam sleeves, suspended honeycomb inner cartons, and fumigation-free solid plywood crating engineered to survive multi-modal sea, air, and ground transit.
Procurement Knowledge Base
Frequently Asked Questions on Custom Quartz Sleeve Sourcing
In-depth responses to technical, operational, and commercial questions raised by international engineering and sourcing directors.
What is the exact dimensional range VEZLO can manufacture for custom quartz sleeves?
VEZLO specializes in drawing continuous fused quartz sleeves with outer diameters (OD) starting from 2 mm for miniature analytical sensors up to 500 mm for heavy-duty industrial and chemical process towers. For specialized high-purity semiconductor diffusion, oxidation, and LPCVD furnace liners, our engineering team has mastered large-diameter drawing up to 520 mm with uniform wall thicknesses tailored from 1.0 mm up to 10.0 mm, cut to lengths exceeding 2,500 mm.
How does fused quartz differ fundamentally from synthetic fused silica in quartz sleeve applications?
Natural fused quartz is produced by high-temperature thermal fusion of naturally occurring high-purity quartz crystal sand (SiO₂ ≥ 99.99%). It features outstanding thermal shock resistance, structural rigidity at temperatures up to 1100°C, and excellent UV transmittance down to 220 nm at an economical price point. Synthetic fused silica is produced by the chemical vapor hydrolysis of silicon halides (such as SiCl₄), providing higher transmission down into the deep vacuum UV spectrum (170–193 nm) with lower trace metal content, but at a significantly higher production cost. For the majority of UV-C disinfection, heater envelopes, and process piping, natural high-purity fused quartz represents the most cost-effective engineering choice.
What is an ozone-free quartz sleeve, and when is it necessary?
Standard high-transmittance fused quartz passes both the 253.7 nm germicidal wavelength and the deep 184.9 nm vacuum UV line. The 184.9 nm wavelength reacts photochemically with ambient atmospheric oxygen (O₂) to create ozone (O₃), a potent oxidizer. When quartz sleeves are installed in indoor air purifiers, open-tank water sanitizers, or spaces where human exposure occurs, ozone is frequently hazardous. An "ozone-free" quartz sleeve incorporates specialized micro-dopants (such as trace Titanium Dioxide, TiO₂) during the quartz glass batching process, which specifically absorbs and filters out the 185 nm line while preserving over 90% transmission at 254 nm.
What end configurations and secondary cold-working processes can be specified on custom drawings?
Our CNC machining and glassblowing workshops can execute complex geometries directly onto sleeves. Standard options include: double-open cut ends (flame-polished or ground 90° smooth), closed round bottoms (domed test-tube style), flat melted bottoms, flared lip collars for flange clamping, ground glass standard taper joints (e.g., ST 24/40, 29/32), precision beveled edges, drilled port holes, and laser-machined positioning slots.
How does VEZLO guarantee against shattering during international sea and air shipping?
Fragile quartz delivery failure is unacceptable in our standard operating procedures. Every quartz sleeve is individually inspected, clean-wiped, and encased inside a form-fitting expanded pearl cotton (EPE) foam tube. Sleeves are packed into double-wall corrugated inner cartons with anti-crush partitions, which are subsequently suspended inside custom-built, heavy-duty fumigation-free plywood export crates equipped with internal shock-absorbing perimeter foam pads. For ultra-long or delicate large-diameter sleeves, exterior tip-and-tell shock indicator sensors can be fitted.
What are the typical lead times for custom OEM prototype tooling and volume batch production?
For standard dimensional tubing that falls within our continuous inventory dies, prototype sample sleeves can typically be finished, annealed, and dispatched within 5 to 7 working days. Highly customized dimensions requiring custom drawing tooling, special flange tooling, or complex CNC slotting require approximately 10 to 15 working days. Full container load (FCL) production runs typically ship within 3 to 4 weeks depending on customized packaging specifications.
Ready to Validate Your Quartz Sleeve Drawing & Engineering Specifications?
Submit your CAD blueprints, operational temperatures, and required optical transmittance ranges. Our Donghai senior quartz glass engineering team will return a comprehensive feasibility analysis and competitive direct-factory quotation within 2 hours.
