Factory Inventory Showcase

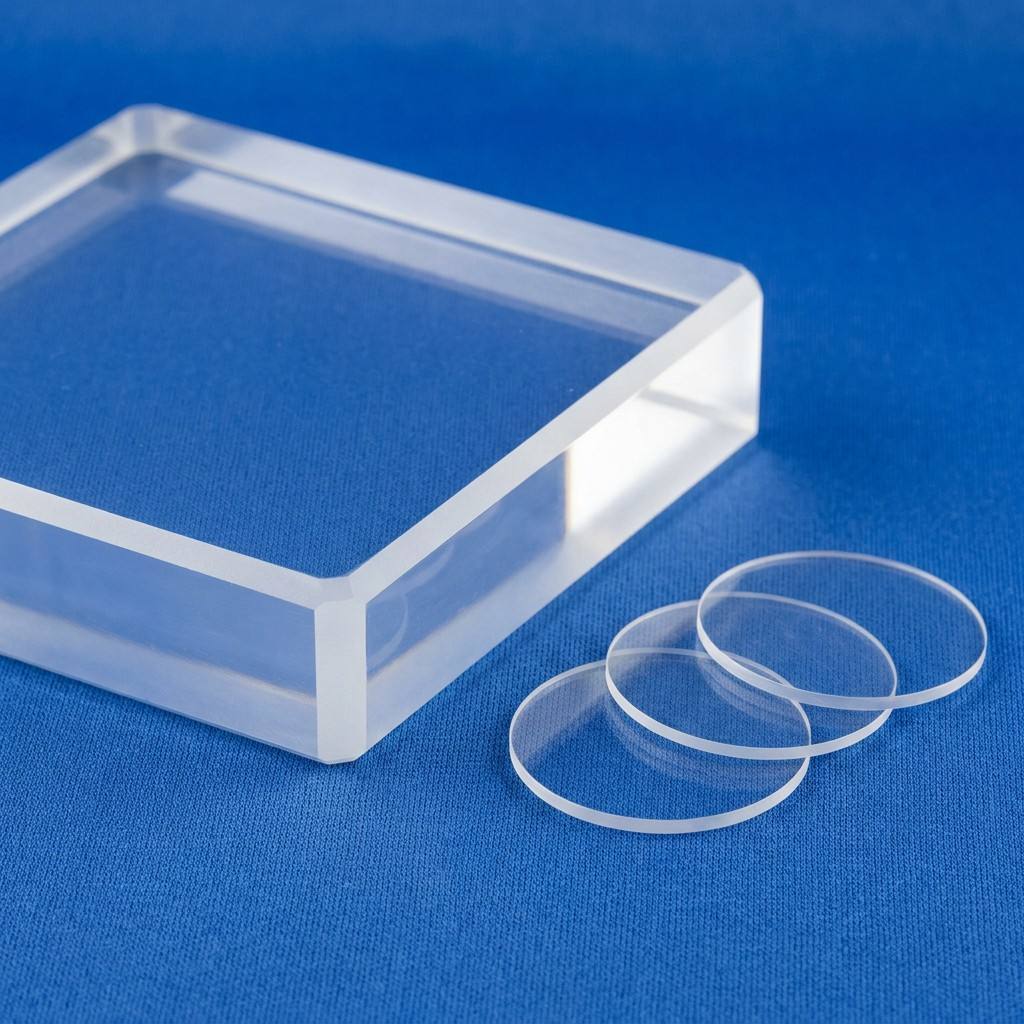

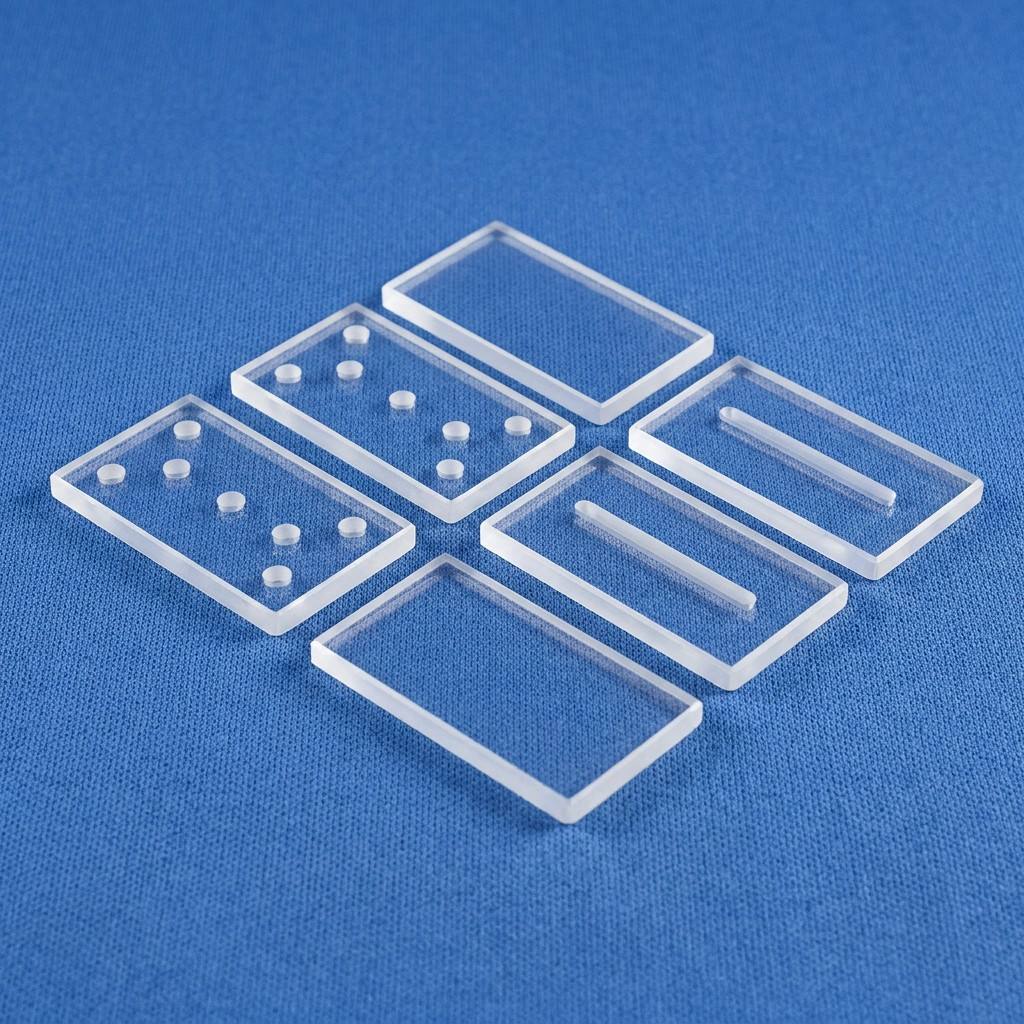

Precision Quartz Glass Rods & Industrial Plates
Direct sourcing from China's quartz capital (Donghai), serving primary manufacturing, petrochemical, chemical processing, and cleanroom semiconductor sectors in Indonesia.
Comprehensive Technical White Paper: Quartz Glass Rod & Component Engineering for Indonesian Industries
As Indonesia advances along its "Making Indonesia 4.0" roadmap, downstream chemical engineering, photovoltaic wafer slicing, optical fiber preform consolidation, and precision analytical labs are facing increasingly stringent material criteria. Operating equipment in the industrial zones of Cikarang, Karawang, Cilegon, and Batam introduces intense thermal shocks, persistent corrosive acid gases, and elevated tropical humidity. Selecting a vetted, enterprise-level quartz glass rod manufacturer and exporter is a foundational requirement to guarantee mechanical uptime, optical clarity, and low thermal expansion.
Fused silica and transparent fused quartz rods are pure silica amorphous networks (SiO₂ ≥ 99.99%) formed through controlled electric fusion or oxyhydrogen flame synthesis. By drawing direct from high-purity natural quartz sand containing trace metals below 20 ppm, our engineered quartz rods maintain exceptional linear thermal expansion coefficients (5.5 × 10⁻⁷ /°C) and continuous structural integrity under operating temperatures of 1,100°C, and short excursion peaks reaching 1,350°C.
Material Dynamics: Fused Quartz Rods vs. Alternative Industrial Dielectrics
| Critical Engineering Metric | High-Purity Fused Quartz (VEZLO Standard) | Borosilicate Glass 3.3 | Alumina Ceramic (Al₂O₃ 99%) |
|---|---|---|---|
| SiO₂ Purity Ratio | ≥ 99.99% | ≈ 81% | Trace / Negligible |
| Coefficient of Thermal Expansion (20–300°C) | 5.5 × 10⁻⁷ /°C | 33 × 10⁻⁷ /°C | 80 × 10⁻⁷ /°C |
| Maximum Working Temperature (Continuous) | 1,100°C (Anneal 1,215°C) | 450°C | 1,600°C |
| Optical Spectral Transmission | 190 nm to 2,500 nm (Deep UV to NIR) | Cut-off below 320 nm | Opaque / Sub-surface Scatter |
| Thermal Shock Resilience (Water Quenching) | > 1,100°C to 20°C (No Cracking) | ≈ 150°C Differential | Prone to rapid brittle fracture |
Localized Industrial Applications in the Indonesian Archipelago
Indonesian manufacturing clusters demand domain-specific material performance tailored to regional environmental and processing constraints:
Petrochemical & Refining (Cilegon & Balikpapan)
Heavy crude distillation and olefin catalytic crackers expose sight apparatus to sulfur dioxide, chlorine, and hot acidic vapors. Our high-temperature quartz sight rods and discs resist virtually all chemical acids (except hydrofluoric and boiling phosphoric), ensuring dependable visual level metering in boiler and pressure vessels without devitrification or clouding.
Semiconductor & Electronics Assembly (Batam Free Zone)
In high-density cleanrooms across Mukakuning and Batamindo, precision-ground quartz glass rods (Ø1.5 mm to Ø80 mm) function as non-contaminating substrate carriers, optical light guides, and wafer boat frame assemblies. With total heavy metallic impurities under 20 ppm, process yields avoid alkali metal and iron poisoning during thin-film heating cycles.
Industrial Heating, Halogen & UV Sterilization (Jawa Timur & Jakarta)
Tropical water sterilization facilities, industrial food dryers, and printing plants across Surabaya and Jabodetabek deploy clear and ozone-free quartz tubes and rods. The material maintains high UV transmittance at 254 nm germicidal lines while blocking or admitting the 185 nm band as specified, resisting solarization even under continuous high-wattage lamp exposure.
Emerging Localization Trends: Why Indonesia's Industrial Trajectory Accelerates Quartz Consumption
Three core macro-economic developments are driving procurement specifications across Indonesia:
1. Solar Photovoltaic Cell Ingot & Wafer Localization: The Indonesian Ministry of Energy and Mineral Resources (ESDM) local content regulations (TKDN) are prompting utility-scale solar assembly and downstream cell manufacturing across Java. Quartz diffusion rods, crucible supports, and thermocouple protection tubes must maintain chemical purity under extended 1,300°C pulls without yielding structural sag or particulate outgassing.
2. Palm Oil (CPO) Oleochemical Refining Upgrades: Modern oleochemical conversion units in Riau and North Sumatra require continuous spectroscopic and visual monitoring of hydrogenated fats and fatty acids. Quartz glass level rods provide thermal stability and thermal-shock resistance when cold samples are introduced into hot processing streams.
3. Advanced Research Laboratory Scaling: Modern analytical research institutes in Bandung and Yogyakarta are upgrading spectroscopic sensors. Fused silica optical rods serve as low-attenuation waveguides across UV, visible, and NIR ranges, outperforming polymer or standard mineral glasses in high-temperature chromatography and spectral measurement setups.
Procurement Directives
Verified Manufacturing Strengths & Supply Reliability
Direct supply-chain integrity from Donghai County, China — eliminating trading markups, ensuring full mechanical traceability, and providing dedicated engineering support for Southeast Asian trade corridors.
Geographic Source Purity
Operating inside China's primary quartz industrial belt with RMB 10M in fixed assets and 50-mu production grounds, using low-impurity sand (≤20 ppm metals) for clear melts with minimal bubble inclusions.
State-Level Technical Pedigree
Pioneered 320 mm high-purity quartz tubes under the Jiangsu Provincial Science & Technology Project, and developed 520 mm large-diameter tubes recognized in national new product evaluations.
Strict Dimensional Metrology
CNC profile grinding, centerless diamond finishing, laser interferometry, and polariscopic stress-relief testing to guarantee rod circularity, axis straightness, and cut tolerances within ±0.02 mm.
Export Packaging for Maritime Transit
Individual pearl-cotton wrapping, shock-absorbing cellular barriers, and ISPM 15 heat-treated plywood crates engineered to withstand port handling and equatorial humidity during transit to Tanjung Priok or Tanjung Perak.
Procurement Helpdesk
Frequently Asked Questions by Indonesian Buyers
Clear, engineering-backed guidance on regulatory compliance, ocean shipping logistics, and custom fabrication parameters.
What specific dimensional tolerances and diameters can you supply for quartz glass rods to Indonesia?
We manufacture continuous drawn and centerless ground quartz glass rods with outer diameters (OD) spanning Ø1.5 mm up to Ø80 mm, with standard lengths up to 2,000 mm or cut-to-length per customer CAD files. Standard drawing tolerance is within ±0.15 mm, while precision diamond-ground and mechanically polished rods can hold tolerances down to ±0.02 mm. Fire-polished, rounded, chamfered, or ground-flat ends can be specified depending on whether the rod is used as an optical waveguide, structural carrier, or stirring shaft.
How do you mitigate sea freight vibration and breakage risks during shipment to Jakarta or Surabaya?
Quartz is a hard, brittle vitreous material requiring specialized export crating. Every quartz rod or plate is first encased in shock-absorbing expanded pearl cotton (EPE) or bubble film, vacuum-bagged against marine moisture, and placed into dedicated inner corrugated separators. These are packed inside export-grade, fumigation-free plywood crates lined with 20 mm high-density foam on all six interior sides. Crates feature tip-n-tell tilt sensors, shock indicators, and water-repellent sealing, sustaining safe intermodal transport via LCL or FCL shipments directly to Indonesian ports.
What documentation is supplied to clear Indonesian Customs (Bea Cukai) smoothly?
We furnish complete export documentation packages compliant with Indonesian import requirements, including Form E (ASEAN-China Free Trade Area) for preferential tariff reduction, Bill of Lading (B/L), Commercial Invoice, Packing List with verified gross mass (VGM), Factory Certificate of Analysis (COA) specifying SiO₂ purity and trace metal spectrums, and Mill Test Certificates. When needed, material safety profiles and HS tariff codes (typically classified under 7002.20 / 7002.31) are pre-aligned with your freight forwarder or PPJK broker.
How does high-temperature fused quartz perform under Indonesia's tropical humidity and corrosive industrial atmospheres?
High-purity fused silica is chemically inert, exhibiting virtually zero water solubility or hydration corrosion under high ambient humidity (unlike sodalime or low-grade glass which experiences alkaline leaching over time). It resists all industrial mineral acids—including boiling hydrochloric, sulfuric, and nitric acids—and stands immune to chemical degradation except when directly subjected to hydrofluoric acid (HF) or concentrated phosphoric acid above 150°C. For chemical processing installations in coastal areas like Cilegon or Gresik, fused quartz prevents clouding, pitting, and stress corrosion.
Can you execute custom CNC lathe cutting, slotting, and flame-welded geometry to engineering drawings?
Yes. Operating comprehensive cold-machining and hot-working glass workshops, our engineering team handles precision CNC slicing, step turning, center-hole core drilling, edge grooving/slotting, and multi-axis flame welding. Whether your project demands quartz thermocouple protection wells, slotted wafer handling rods, optical sight glasses with mounting steps, or complete quartzware assemblies, you can submit your technical drawings (.DXF, .DWG, .STEP, or .PDF) for direct manufacturing review.
Ready to Source High-Precision Quartz Rods & Fabricated Components?
Submit your technical specifications, outer diameter requirements, or CAD blueprints today. Our technical sales engineers guarantee a direct feasibility review and transparent quotation within 2 hours.
